The Right Solution for the Right Data

We are committed to providing state-of-the-art monitoring stations that deliver data you can trust.

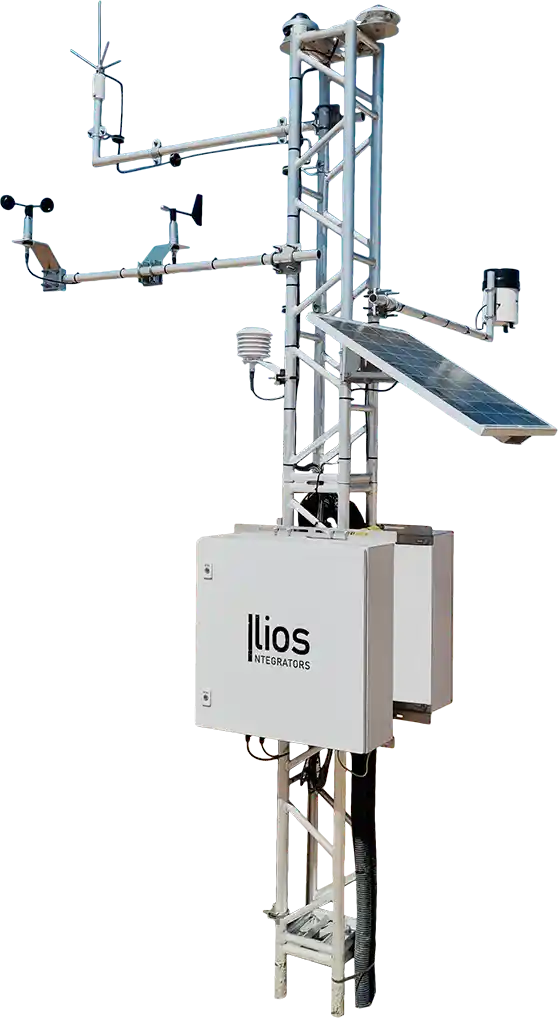

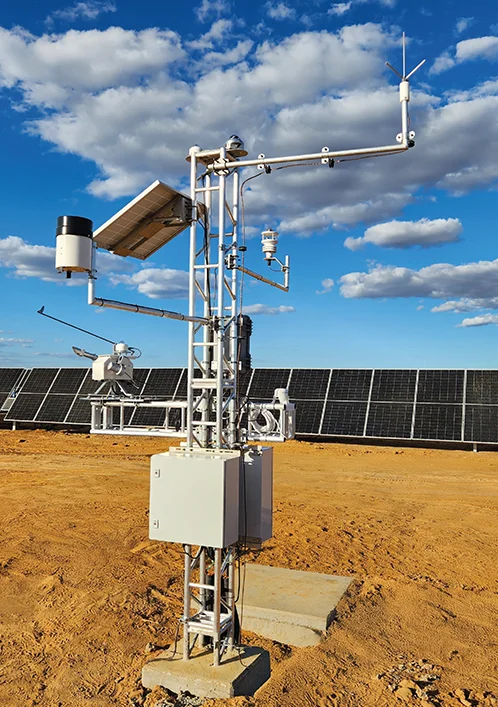

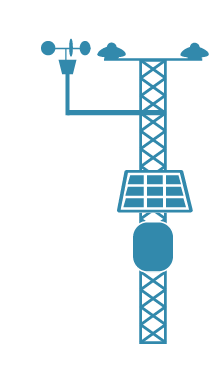

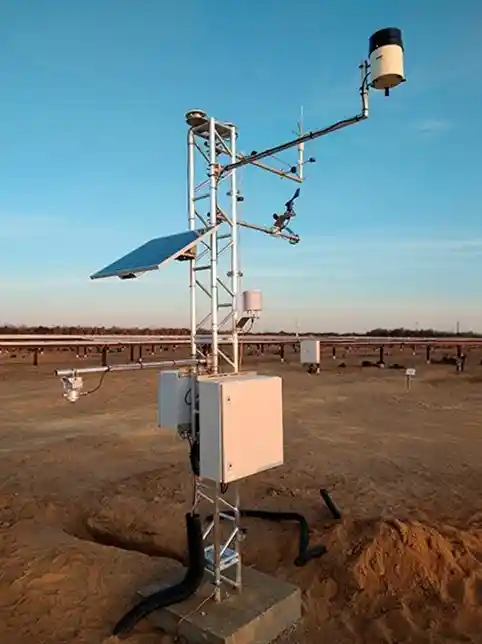

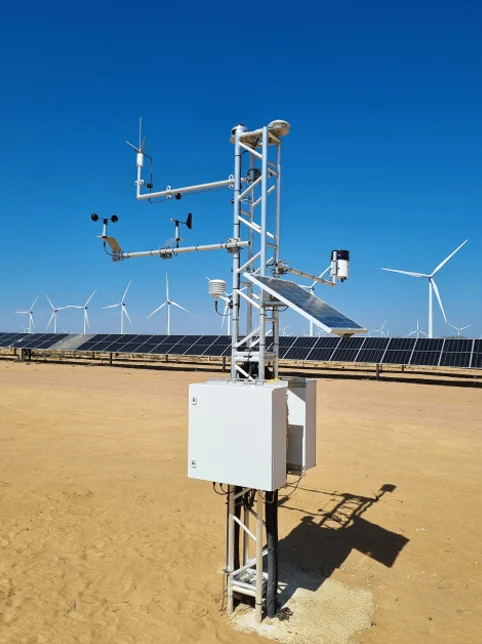

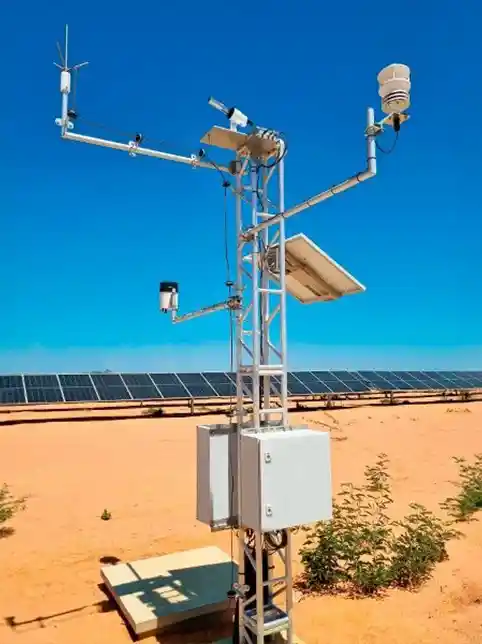

ROBUST AND EASY TO OPERATE METEOROLOGICAL STATIONS FOR LARGE SOLAR PARKS

Ilios Integrators has the capability to install the most comprehensive and complex solar weather stations, designed to meet the demands of the most discerning clients who wish to monitor a Class A solar plant in accordance with the IEC 61724 standard. With the ability to develop customized solutions, Ilios Integrators tailors each system to the specific needs and preferences of its clients, using a wide range of data loggers available in the market.

Have Questions? We're Ready to Help!

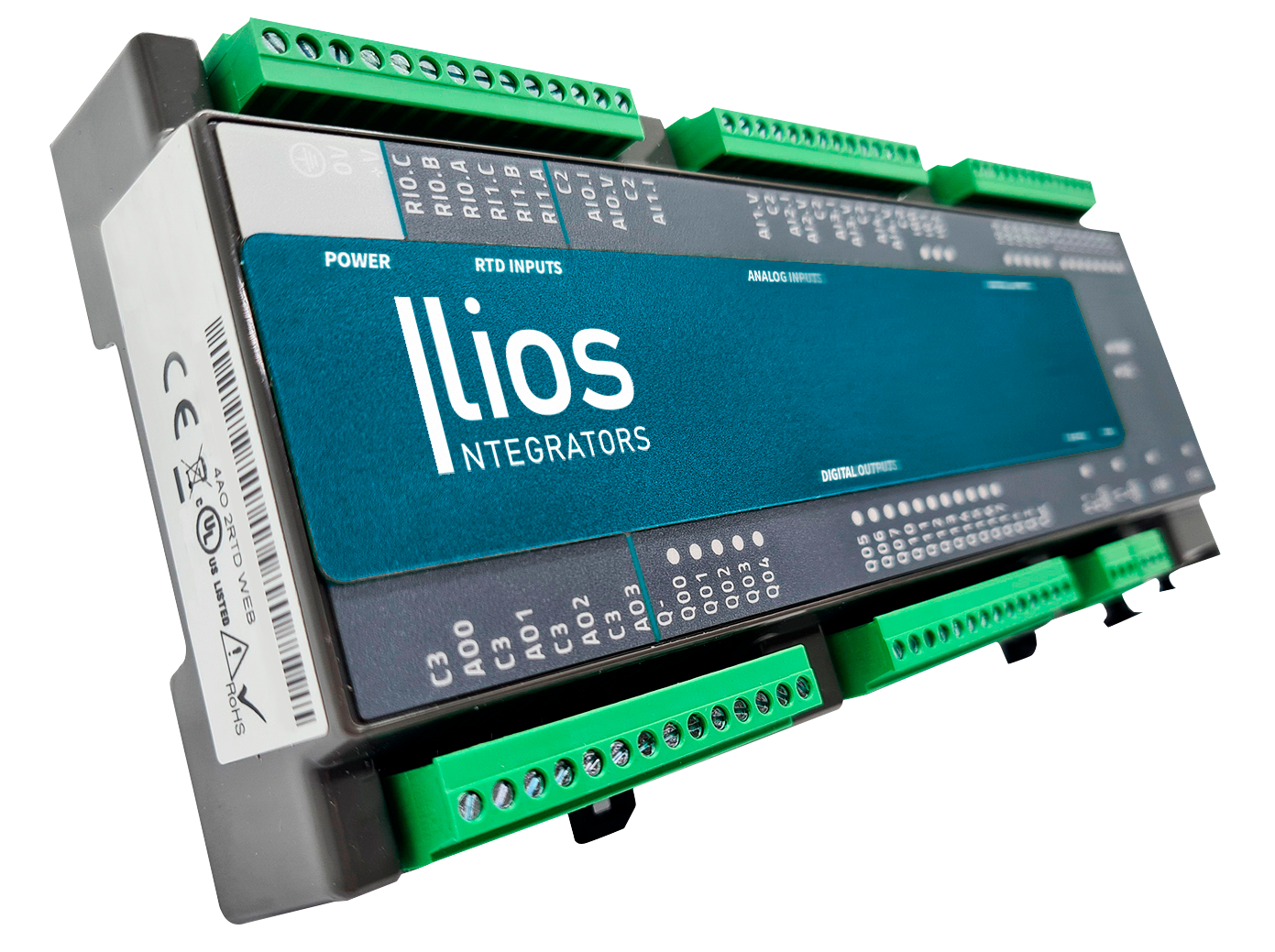

OUR DATA LOGGERS

The Ilios Integrators Data Logger is a multifunctional data recorder with both analog and digital inputs, designed to monitor environmental data in small, medium, and large-scale solar power plants, in compliance with the IEC 61724 standard. It provides high precision, robustness, reliability, and cost-effectiveness.

The Ilios Data Logger can read various analog and digital sensors. With a data collection frequency of 1 Hz, it can store processed values– such as Maximum, Minimum, Average, and Standard Deviation–as well as calculations like kWh, daily kWh, and accumulated kWh in .CSV format.

In addition to the Ilios Data Logger, Ilios Integrators leverages its expertise with a wide range of data loggers, including trusted brands like Campbell, Ammonit, OTT, and VAISALA, to deliver customized solutions that meet each client’s unique requirements, ensuring seamless integration and optimal performance.

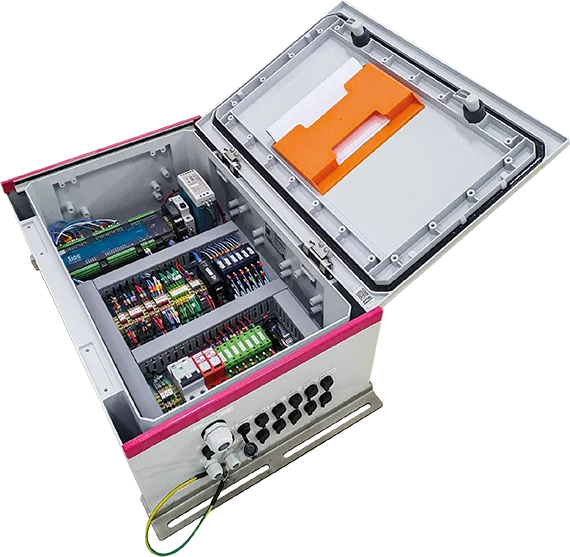

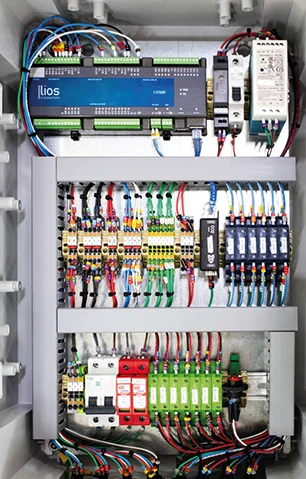

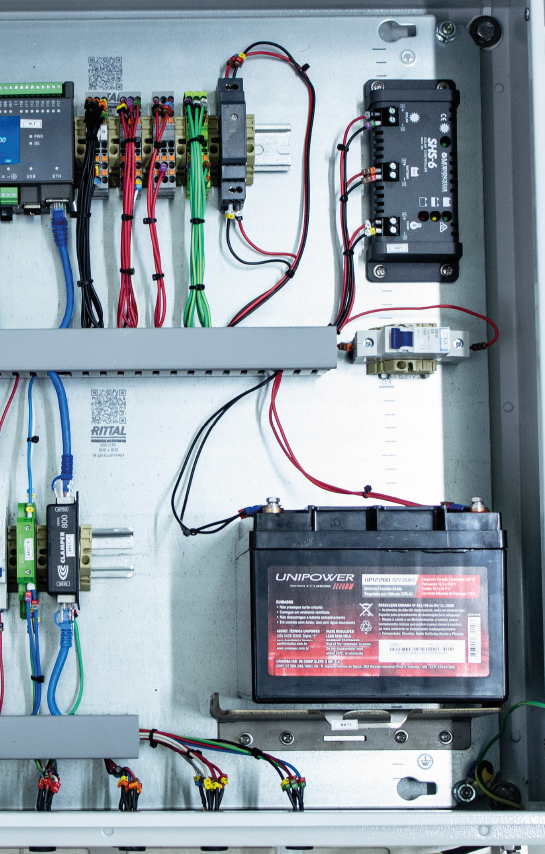

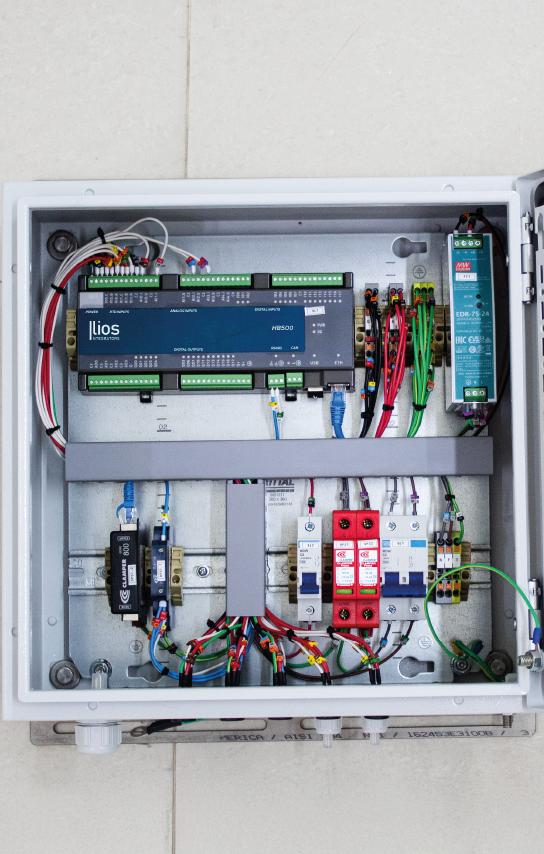

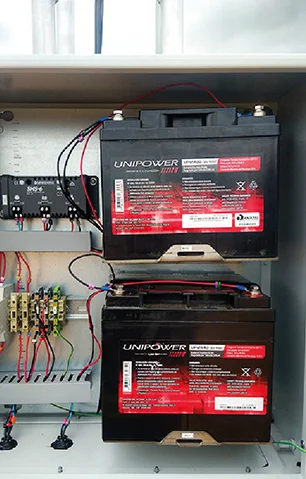

OUR ELECTRICAL CONTROL PANEL

The data collection box is manufactured from fiberglass-reinforced polyester and coated with automotive resin, ensuring over 10 years of resistance to solar exposure and water damage.
The electrical panel is equipped with multiple surge protection devices (SPDs), including individual protection for each analog and digital channel, such as RS485 Modbus networks and Ethernet Modbus TCP/IP.

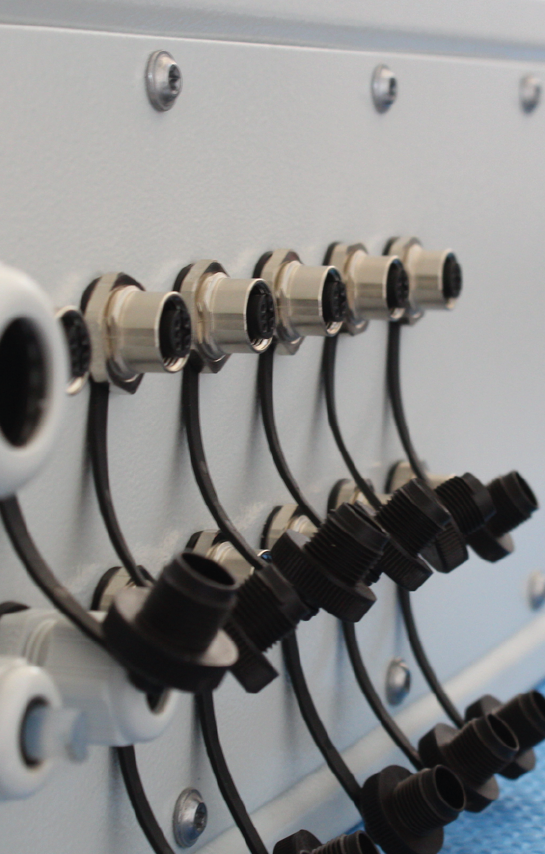

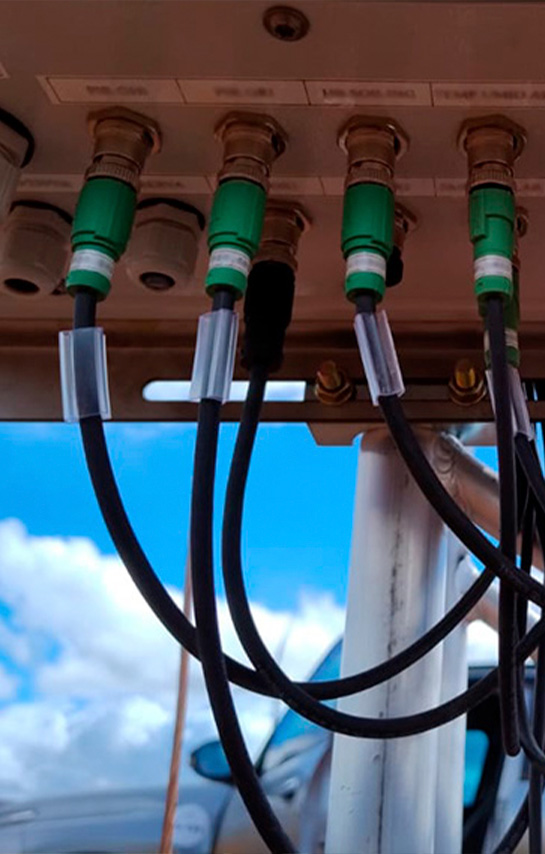

All sensors are connected to the electrical panel via IP65-rated Plug & Play connectors, facilitating quick replacement with new sensors during corrective maintenance. The electrical panels come with standard engineering documentation in .DWG format, including single-line diagrams and mechanical installation drawings for the panels in solar station towers.

EVERYTHING ESSENTIAL FOR PV SYSTEMS

Monitored Parameters

• Solar Panel Temperature

• Ambient Temperature

• Relative Humidity

• Wind Speed

• Wind Direction

• Solar Irradiation GHI, GRI, POA, POA REAR, DNI, DHI, Albedo

• Precipitation (Rain)

• Hail

Features That Make the Difference

• Surge Protection Devices (SPDs)

• Galvanically Isolated Power Supply with Surge Protection

• SPD for RS485 Network

• IP65 Stainless Steel Connectors

• Integration of Data into the Plant’s SCADA System

• Calibration Certificates

• Assembly, Operation, and Maintenance Manual

• Grounding Kit

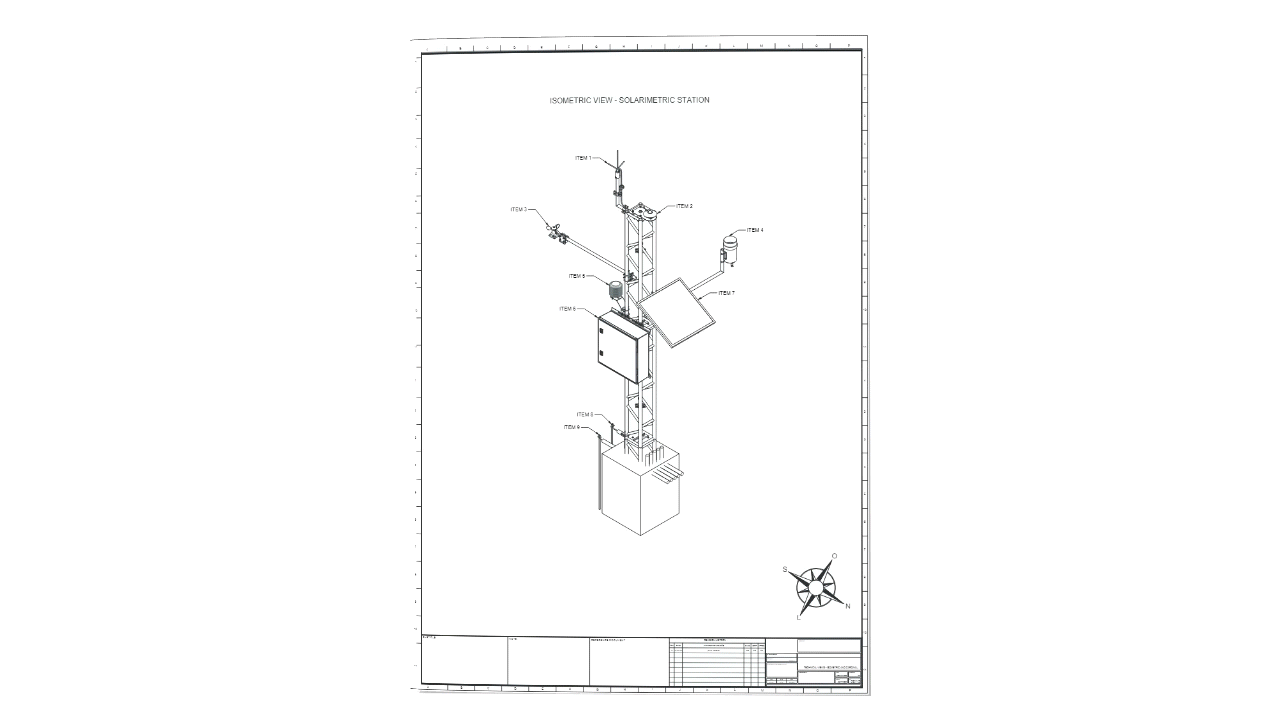

TECHNICAL DOCUMENTS & SUPPORT

Each Ilios Solar Radiation Station, comes with comprehensive technical documentation, including the user manual, technical drawings gallery, equipment datasheets, bill of materials, structural calculation report, single-line diagram, Modbus communication map, calibration certificates, and the inspection and test plan (ITP).
Documents come both in physical form with the equipment and digitally via online transfer as part of the station purchase, giving you all the resources you need.

0 GW+

+ 0

TEXAS

FEATURED PRODUCTS

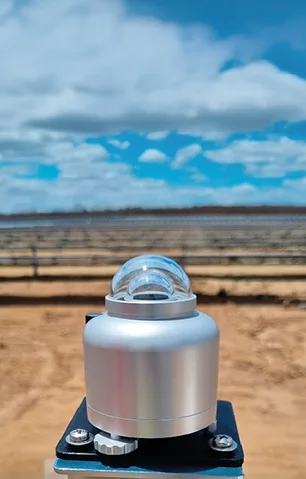

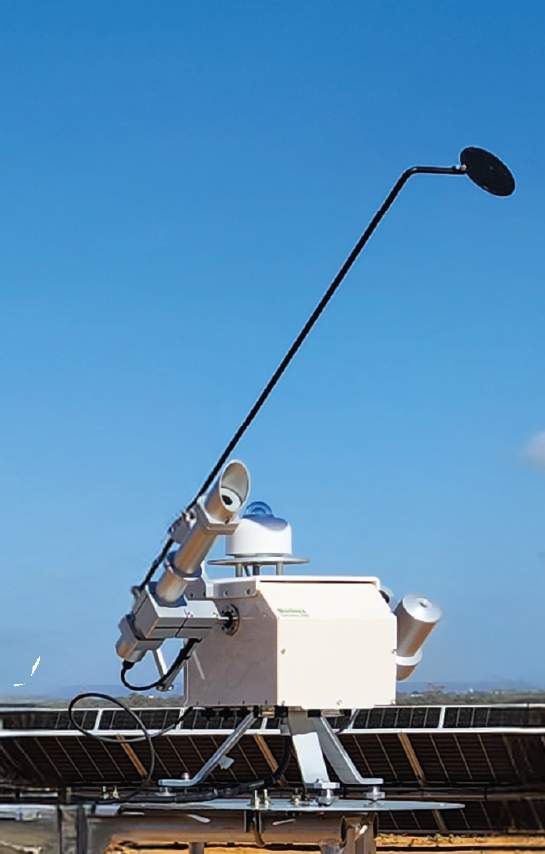

Ilios offers various mechanical mounting solutions for pyranometers and soiling measurement sensors, equipped with electrical isolators, which are installed on solar trackers from several manufacturers, such as STI, Next Tracker, Soltec, and Trina, to measure POA or POA REAR Solar Irradiance.

PV Temperature Module

Measurement of temperature in bifacial solar panels, featuring high thermal conductivity.

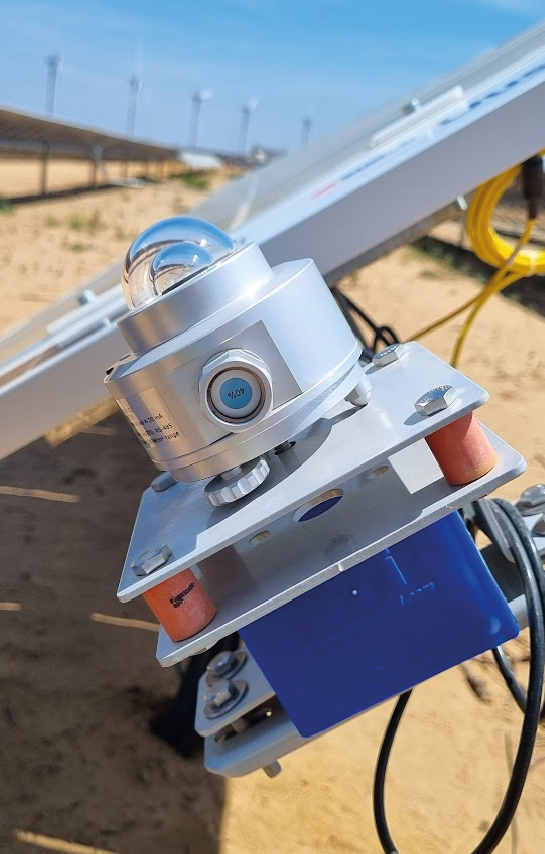

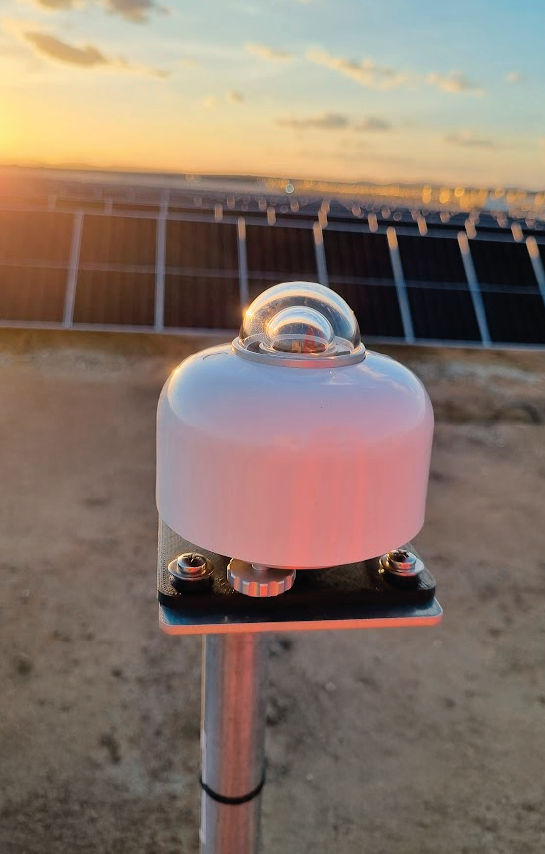

POA REAR

Designer to measure solar irradiance on the rear side of bifacial solar panels, the POA REAR pyranometer captures reflected ground light and diffuse environmental light diffused .

Soiling Sensor

Custom support was developed to secure the soiling sensor at the tip of a tracker, ensuring the sensor is positioned at the same height as the plane of the solar panels installed on the tracker.

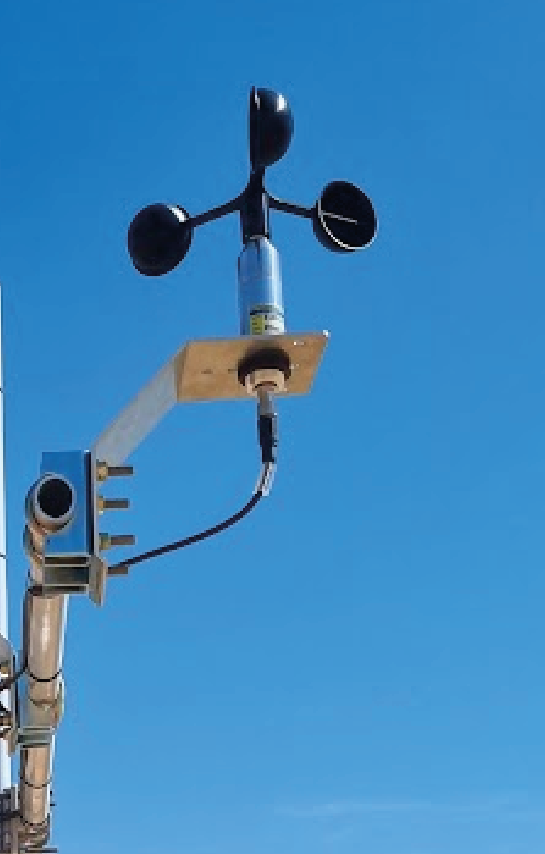

Anemometer Mount

The 304 stainless steel anemometer brackets provida excellent corrosion resistance for outdoor use. Laser-cut for pricision, they ensure accurate dimensions and smooth edges. Sensors for wind speed and direction are positioned away from the towwer to minimeze interference.

UPCOMING EVENTS

🔍 See What’s Next

RE+ Solar Energy

LAS VEGAS, NV SEPTEMBER 8-11, 2025

Visit our Booth V2044

With operations across Latin America, our sustained growth reflects the quality of our services and the success of our results. From research and product development to integration and the advancement of new technologies, we manage every phase to ensure optimal outcomes.

Our company boasts over two decades of extensive experience, making a significant impact on the dynamic global energy market.

ACCURATE SOLUTIONS TO MEET OUR CLIENT'S NEEDS

“I cannot overlook the excellent work Ilios performs with its solar stations. The accuracy of the data provided and the reliability of the data loggers reflect an admirable commitment to advancing renewable energy. Congratulations on such impactful work!”

The metrological precision of the sensors and the reliability of the data loggers meet rigorous requirements. Attention to technical details and compliance with international standards place Ilios in a prominent position within the sector. Thank you!

The integration of sensors and reliable data acquisition systems demonstrates alignment with traceability requirements and standards. Ilios contribution goes beyond the renewable energy sector, strengthening the technological infrastructure of our country.
